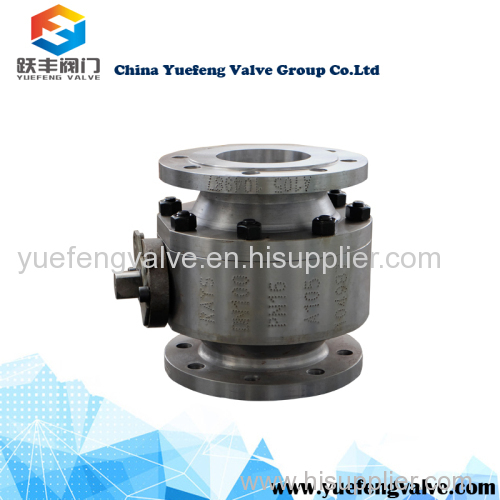

cast steel floating ball valve Q347F manufacturer from China Yue Feng Valve Manufacturing Co., LTD

Price:	12.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: Q347F

Production Capacity: 11111

Delivery Date: 1WEEK

Standard or Nonstandard: Standard

Structure: Ball

Temperature of Media: Normal Temperature

Brand Name: yuefeng

Means of Transport: Ocean,Land,Air

Packing: WOODEN

Power: Manual

Pressure: Others

Material: Others

Media: Gas

BALL material: F316

Principle of the cast steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats.

Principle of the cast steel floating ball valve: This kind of ball valve has a floating ball supported by two valve seats. Under the medium pressure effect, a certain displacement can be generated by the ball itself so as to be pressed onto the seat seal ring at the outlet, guaranteeing tightness at the outlet.

The floating ball valve is mainly divided into such two structures as the single-body type and double-body type float ball valve structures

Design Features
The ball valve are designed in accordance with ISO17292,API 608,BS 5351,GB/T 12237;
Simple structure with good tightness and small torque;
Have reduce bore type and full bore type with the minimum flow resistance (zero actually);
Low emission packing;
Fire safe, anti-static and anti-blowout stem design;
Optional locking device
Optional ISO 5211 top flange
